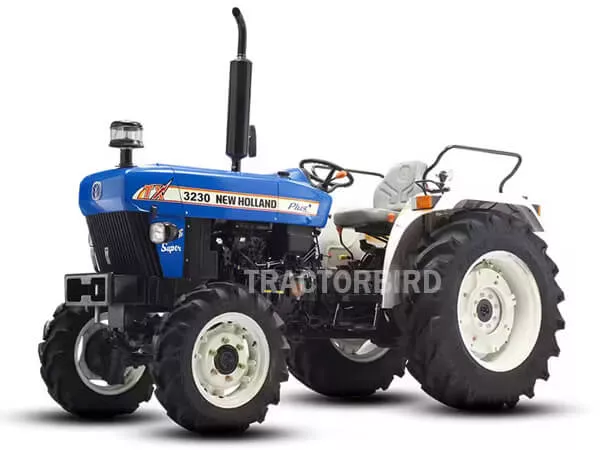

New Holland 3230 TX Super-4WD

New Holland 3230 TX Super-4WD tractor is a 45 HP model priced between ₹ 8.40 Lakh to ₹ 8.75 Lakh. It has a fuel tank capacity of 46 Liter . The engine capacity of this tractor is 2500 CC with 3 cylinders. Additionally, it comes with 8 Forward + 2 Reverse and produces 39 HP PTO and the lifting capacity of the New Holland 3230 TX Super-4WD is 1500 Kg.

Rating:5.00
Brand New Holland Tractors
Cylinder 3
HP Category 45HP
Gear Box 8 Forward + 2 Reverse
Brakes Mechanical/Oil Immersed Brakes
Warranty 6000 Hours or 6 Year
Price ₹ 8.40 to 8.75 Lakh

New Holland 3230 TX Super-4WD Tractor Specifications

New Holland 3230 TX Super-4WD Engine

No. Of Cylinder 3
HP Category 45 HP
Capacity CC 2500 CC
Engine Rated RPM 2000 RPM
Max Torque 160.7 Nm
Air Filter Oil Bath with Pre-Cleaner
PTO HP 39 HP
Cooling System Water Cooled

New Holland 3230 TX Super-4WD Transmission(GearBox)

Clutch Type Double/Single*
Transmission Type Fully Constant Mesh AFD
Gear Box 8 Forward + 2 Reverse
Battery 75 Ah
Alternator 35 Amp
Forward Speed 2.5-30.81 kmph
Reverse Speed 3.11-11.30 kmph

New Holland 3230 TX Super-4WD Brakes

Brake Type Mechanical, Real Oil Immersed Brakes

New Holland 3230 TX Super-4WD Steering

Steering Type Mechanical/Power Steering (optional)

New Holland 3230 TX Super-4WD Power Take Off

PTO Type Eptraa PTO – 7 speeds PTO
PTO rpm 540

New Holland 3230 TX Super-4WD Fuel Capacity

Fuel Tank Capacity 46 Liter

New Holland 3230 TX Super-4WD Dimension and Weight

Weight 1810 KG
Wheelbase 1920 MM
Overall Length 3415 MM
Tractor Width 1700 MM
Ground Clearance 390 MM

New Holland 3230 TX Super-4WD Lifting Capacity(Hydraulics)

Lifting Capacity in Kg 1500 Kg
Hydraulics Control HP Hydraulic with Lift-O-Matic , Multi Sensing Point

New Holland 3230 TX Super-4WD Tyre Size

Front 8.3 x 24
Rear 13.6 x 28

New Holland 3230 TX Super-4WD Additional Features

Accessories Tools, Bumpher, Top Link, Ballast Weight, Canopy, Drawbar, Hitch
Status Launched

About New Holland 3230 TX Super-4WD

MAIN FEATURES

  • Max useful power - 38hp
  • PTO Power & 35.4hp
  • Drawbar Power
  • Max Torque - 160.7 Nm
  • Eptraa PTO – 7 speeds PTO
  • Independent
  • PTO Clutch
  • SOFTEK CLUTCH
  • Fully Constant Mesh AFD
  • HP Hydraulic with Lift-O-Matic & 1800 KG Lift Capacity
  • Multisensing with DRC Valve
  • Straight Axle Planetary Drive
  • 4WD MHD Axle
  • Double Metal Face sealing in Trans. - PTO & Rear Axle
  • 8+8 Synchro Shuttle
